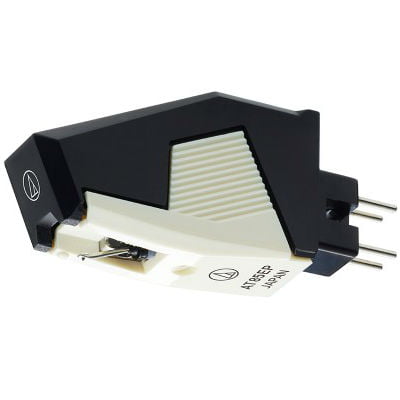

Audio-Technica AT85EP P-Mount MM Cartridge


Out of stock

SKU: AU-AT85EP/19160 Category: Tag:


The AT85EP allows owners of Technics™,Hitachi (LO-D)™,Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer. Also suitable replacement for discontinued cartridges: AT3472EP,AT3482EP.

Designed specifically for the linear format,the AT85EP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.
Type: Dual Magnet
Mounting: P-Mount
Frequency Response: 20 – 20,000Hz
Channel Separation: 20dB at 1kHz
Output Channel Balance: 2.0dB
Output Voltage: 3.5mV (mV at 1kHz,5cm/sec)
Vertical Tracking Angle: 20o
Vertical Tracking Force Range: 1.0 -1.5g
stylus Shape: Elliptical
stylus Size: 0.3 x 0.7mil
stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Inductance: 400mH (1kHz)
Recommended Load Impedance: 47KΩ
Recomended Load Capitance: 100 – 200pF
Weight: 6.0g
Dimensions: H10.0 x W15.3 x D35.1mm
Replacement stylus: ATN85EP
