Description

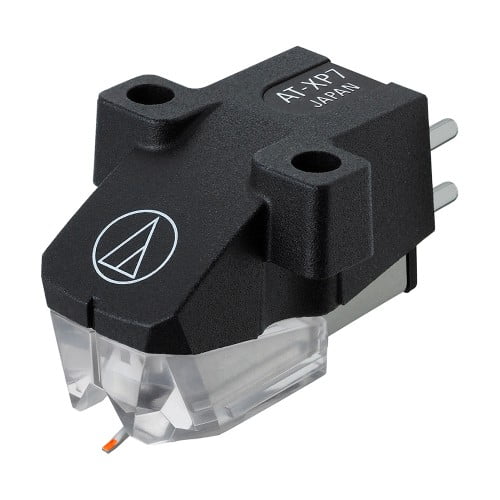

The AT-XP series cartridges provide a high quality sound for vinyl DJ’s. Offering all of the features of a DJ cartridge,but with a Hi-fi sound,the XP series are perfect for the stage and club DJ who prioritises sound quality.
Specifications:
Model: AT-XP7
Type: Dual Magnet
Mounting: ½"
Frequency Response: 20 – 20,000Hz
Channel Separation: 22dB at 1kHz
Output Channel Balance: 2.0dB
Output Voltage: 56.0mV (mV at 1kHz,5cm/sec)
Vertical Tracking Angle: 20o
Vertical Tracking Force Range: 2.0 – 4.0g (standard 3.0g)
stylus Shape: Elliptical
stylus Size: 0.3 x 0.7mil
stylus Construction: Bonded Round Shank
Cantilever: Aluminium Tapered Pipe
Coil Inductance: 1H (1kHz)
Static Compliance: 20 x 10-6cm/dyne
Dynamic Compliance: 8.0 x 10-6cm/dyne
Recommended Load Impedance: 47 KΩ
Recomended Load Capitance: 100 – 200pF
Weight: 6.2g
Dimensions: H17.2 x W17.8 x D28.3mm
Replacement stylus: ATN-XP7
Accessories Included:
2 x 11mm installation screws
2 x 8mm installation screws
2 x washers, 2 x nuts
1 x Non-magnetic screwdriver
