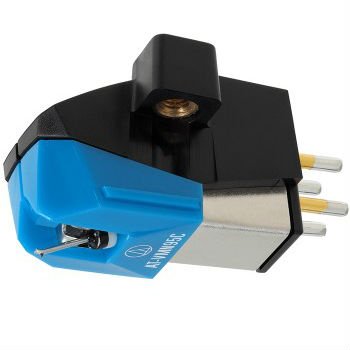

Audio-Technica VM95C Conical Stereo Cartridge

£34.00

In stock

SKU: AT-VM95C/20114 Category: Tag:

Description

The AT-VM95C,the new Audio-Technica entry model Conical cartridge Has replaced the legendary AT90 Series models such as AT91, AT91R and CN5625AL

Also the AT-VM95C is a “budget” cartridge featuring a conical stylus,the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical,Elliptical Nude,Microlinear and Shibata.
Specifications:
Model: AT-VM95C
Type: Dual Magnet
Mounting: ½” centres
Frequency Response: 20 – 20,000Hz
Channel Separation:18dB at 1kHz
Output Channel Balance: 2.5dB
Output Voltage: 4.0mV (mV at 1kHz,5cm/sec)
Vertical Tracking Angle: 23o
Vertical Tracking Force Range: 1.8 – 2.2g (standard 2.0g)
stylus Shape: Conical
stylus Size: 0.6mil
stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 3.3 KΩ (1 kHz)
Coil Inductance: 550mH (1kHz)
DC Resistance: 485Ω
Static Compliance: 17 x 10-6cm/dyne
Dynamic Compliance: 6.5 x 10-6cm/dyne (100Hz)
Wire used for Coil: T.P. Copper
Recommended Load Impedance: 47 KΩ
Recomended Load Capitance: 100 – 200pF
Weight: 6.1g
Dimensions: H17.2 x W18.9 x D28.3mm
Replacement stylus: AT-VMN95C
Accessories Included:
2 x 11mm installation screws
2 x 8mm installation screws
2 x washers
