Description

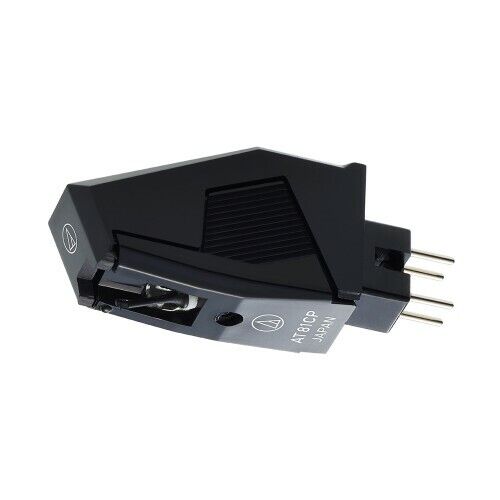

AT81CP P-mount Dual Moving Magnet cartridge with conical bonded stylus. 0.6 mil conical stylus, Bonded round shank diamond and Carbon Fibre Reinforced ABS cantilever
Specifications:
Type: Dual Magnet
Mounting: P-Mount
Frequency Response: 20 – 20,000Hz
Channel Separation: 18dB at 1kHz
Output Channel Balance: 2.5dB
Output Voltage: 3.5mV (mV at 1kHz,5cm/sec)
Vertical Tracking Angle: 20o
Vertical Tracking Force Range: 1.0 -1.5g
stylus Shape: Conical
stylus Size: 0.6milpmount,
Coil Inductance: 400mH (1kHz)
Recommended Load Impedance: 47KΩ
Recomended Load Capitance: 100 – 200pF
Weight: 6.0g
Dimensions: H10.0 x W15.3 x D35.1mm
