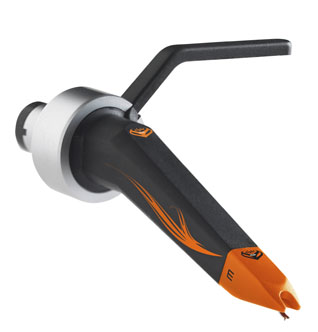

Concorde Night Club MkII Cartridge

£165.00

SKU: O-CONNCS2 Category:

Description

Following in the footsteps of the legendary Night Club Series, the re-engineeRed Night Club MkII boasts numerous sonic improvements in both club and Studio settings.

With a New cartridge body, the Night Club MkII offers increased output voltage for powerful, energetic Sound and enhanced performance from integrated Phono preamps such as the ones found in DJ mixers).

The Redesigned elliptical stylus provides well-balanced high frequency response and ample low end reproduction.  The Night Club MkII marks a New generation of club cartridges, designed to surpass the Gold standard set by the Original Night Club cartridge.

Technical data:
Model Type: Moving Magnet Complete Uni Headshell and Stylus
Output Voltage at 1000 Hz, 5cm/sec: 8mV
Channel Balance at 1 kHz: 1.5dB
Channel Separation at 1 kHz: 23dB
Channel Separation at 15 kHz: 15dB
Frequency Range at -3dB: 20-22,000Hz
Frequency Response: 20-20.000 Hz +/-1.5dB
FIM Distortion at Recommended force: DIN 45.542 <1%
Tracking ability at 315Hz at recommended Tracking force: 80µm
Compliance, Dynamic, Lateral: 7µm/mN
Stylus Type: Special Elliptical
Stylus tip radius: r/R 13/25µm
Tracking force Range: 2.0-5.0g 20-50 mN
Tracking force: Recommended 3.0g 30mN
Tracking Angle: 20º
Internal Impedance: DC resistance 1000
Internal Inductance: 580mH
Recommended Load Resistance: 47kΩ
Recommended Load Capacitance: 200-600pF
Cartridge Colour: Body/Stylus Black/Orange
Cartridge weight: 18.5g
Original Replacement Stylus: STYNCS2
